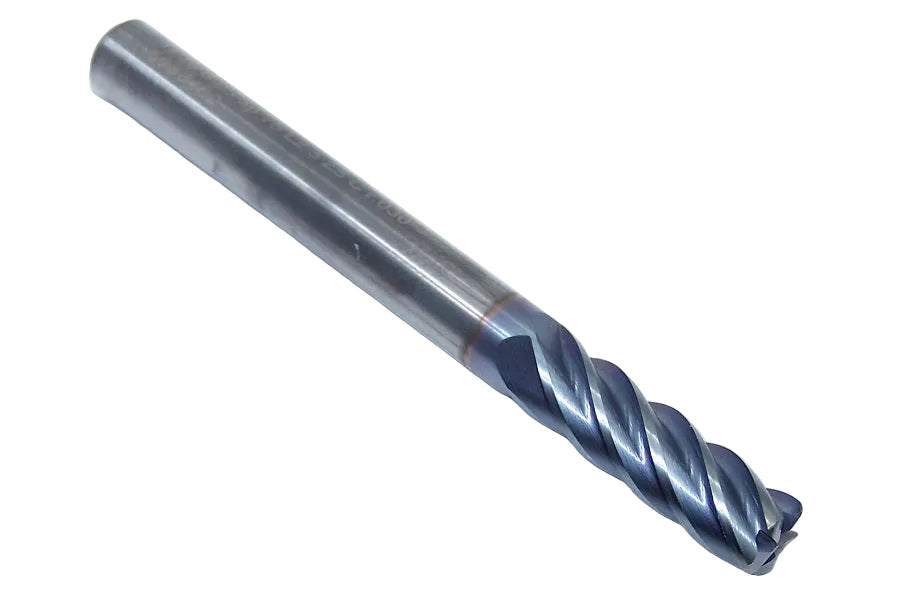

RE1-.250.750.750Z5030C25 Ingersoll 1/4" Carbide 5 Flute End Mill .030" Radius TiAlCN Coated .250" Diameter .750" Flute 2.50" Length .250" Shank RhinoRound (9589527)

RE1-.250.750.750Z5030C25 Ingersoll 1/4" Carbide 5 Flute End Mill .030" Radius TiAlCN Coated .250" Diameter .750" Flute 2.50" Length .250" Shank RhinoRound (9589527)

Part Number: RE1-.250.750.750Z5030C25

SKU: 158055449627

Manufacturer: Ingersoll Cutting Tools

$39.40 USD
$39.40 USD
Sale Sold out

Out of stock? Contact us to see if more are available!

Out of stock

PRODUCT STATS

DIAMETER 0.2500"
FLUTE NUMBER 4
LENGTH OF CUT 0.7500"
OVERALL LENGTH 2.5"
SHANK SIZE 0.25"
SIZE 1/4"
BRAND Ingersoll Cutting Tools
CORNER RADIUS 0.03"
CUTTING SIZE 1/4"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Radius
FINISH TYPE TiAlCN
FLUTE DIRECTION Right Hand
FLUTE STYLE Variable Helix
HELIX ANGLE 38.0°
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Hardened Steel, Cast Iron
MPN RE1-.250.750.750Z5030C25
USABLE LENGTH 0.75"
WORK DIRECTION Right Hand

Made in the USA

Authorized Ingersoll Distributor

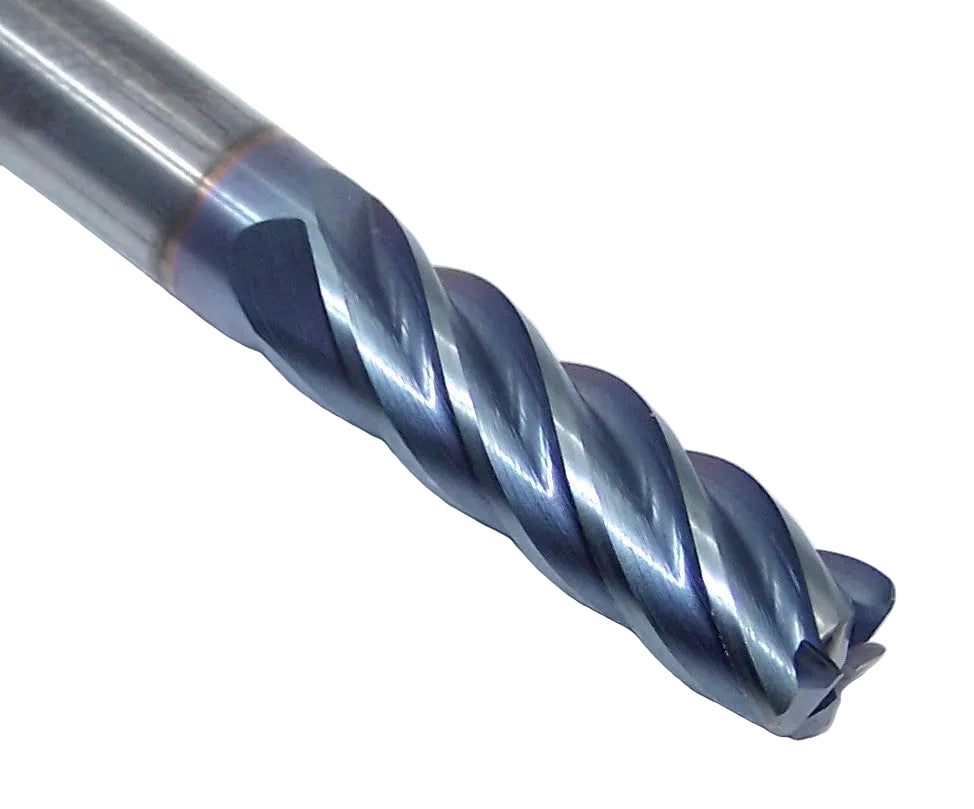

Up for sale is a premium Ingersoll Cutting Tools "RhinoRound" high-performance solid carbide end mill. This specialized 5-flute cutter is engineered for extreme productivity, excellent tool life, and high metal removal rates in challenging materials. It features a precision corner radius and a variable pitch geometry to completely eliminate harmonic chatter.

Key Features & Applications

  • High-Efficiency 5-Flute Design: The 5-flute configuration offers significantly higher core strength and allows for increased feed rates compared to standard 3 or 4-flute tools.

  • 38° Variable Helix / Variable Pitch: Specially engineered to break up harmful harmonics and chatter, allowing for smooth, silent cutting even during deep profiling or heavy peripheral cuts.

  • 0.030" Radius Protection: Reinforced with a precision corner radius to prevent corner chipping, dramatically extending tool life while leaving a high-quality finish on the workpiece floor.

Applications

  • steel
  • stainless steel
  • cast iron
  • high temperature alloys

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
