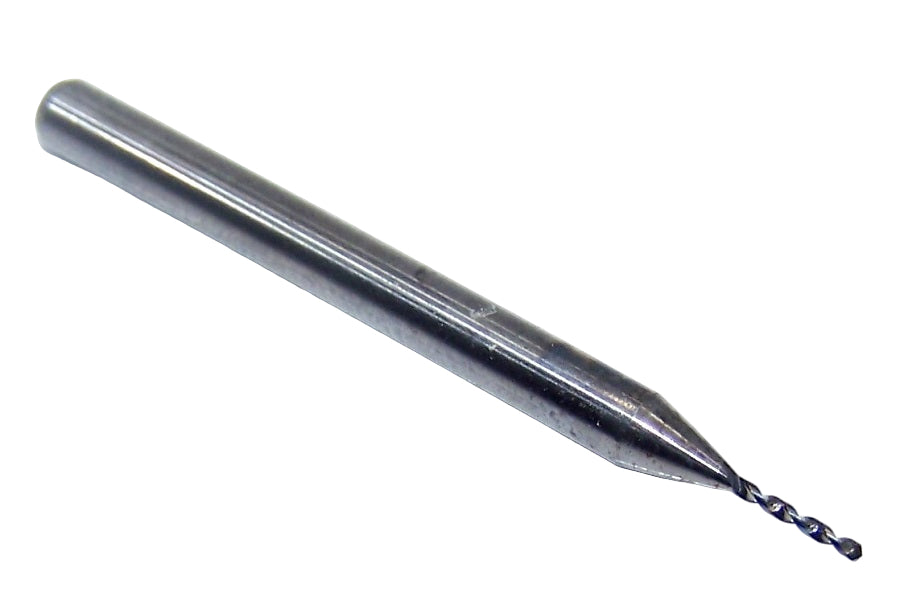

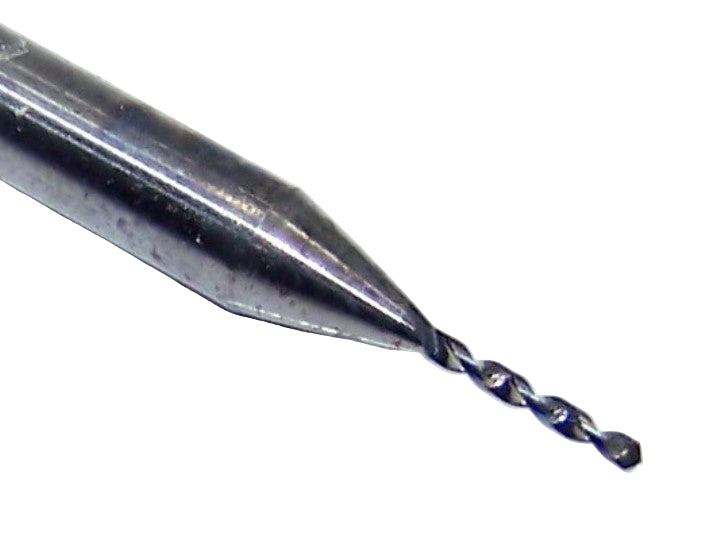

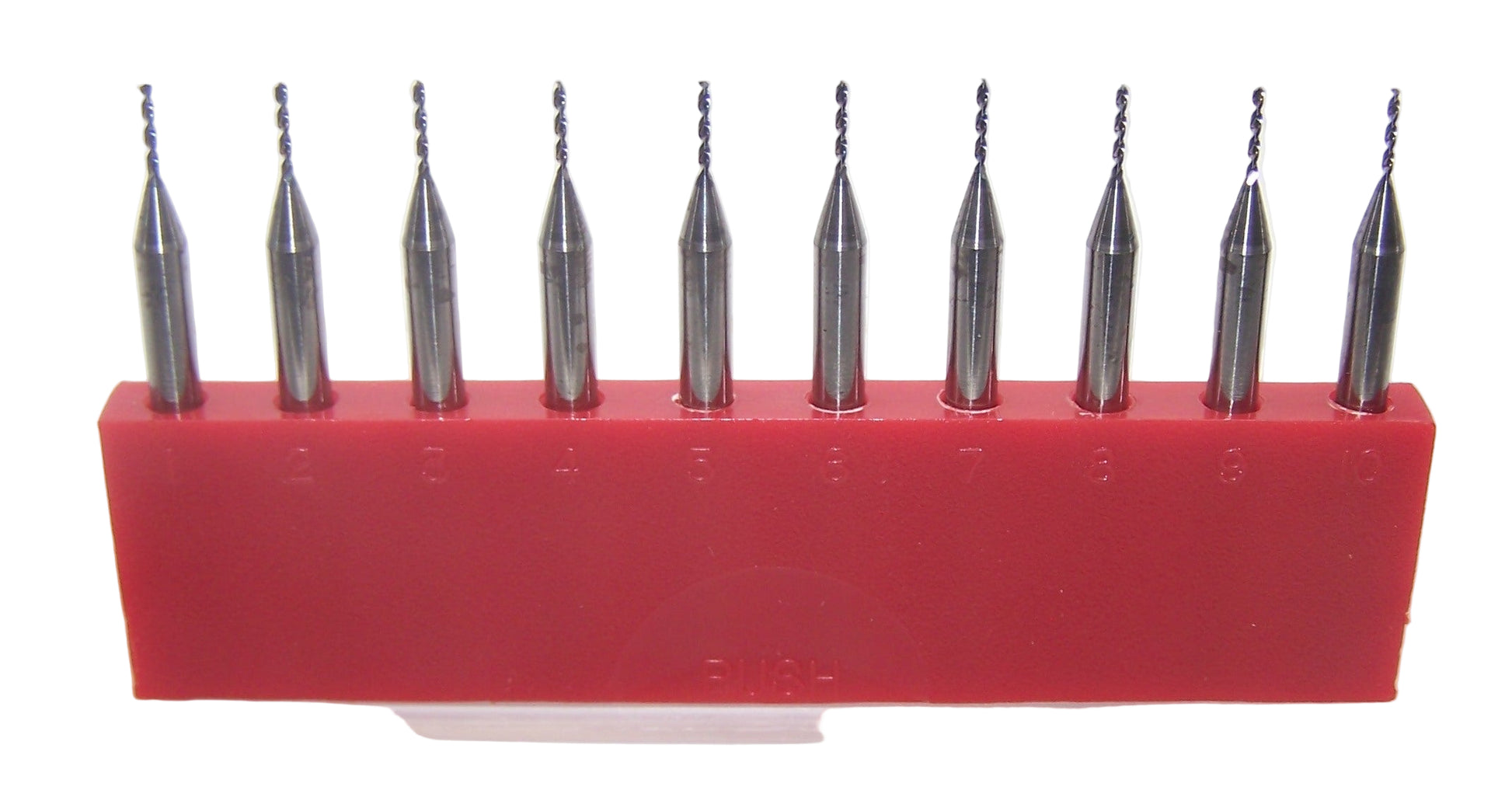

SD40 0283 Kyocera .0283" Carbide 2 Flute Drill Micro Medical .0283" Diameter 0.150" Flute 1.5" Length 0.125" Shank 130° Point (pack of 10)

SD40 0283 Kyocera .0283" Carbide 2 Flute Drill Micro Medical .0283" Diameter 0.150" Flute 1.5" Length 0.125" Shank 130° Point (pack of 10)

Part Number: SD40 0283

SKU: 157458084773

Manufacturer: Kyocera Microtools

$10.00 USD
$10.00 USD
Sale Sold out

Low stock: 5 left

PRODUCT STATS

DIAMETER 0.0283"
FLUTE NUMBER 2
LENGTH OF CUT 0.150"
OVERALL LENGTH 1.5"
SHANK SIZE 0.125"
SIZE 0.719mm
BRAND Kyocera Microtools
CUTTING SIZE .0283"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Drill Point
FINISH TYPE Bright
FLUTE DIRECTION Right Hand
FLUTE STYLE Spiral
INCLUDED POINT ANGLE 130.0°
MATERIAL Solid Carbide
MATERIALS CUT Wood, Plastic, Aluminum, Composite Materials, Steel, Stainless Steel
MPN SD40 0283
USABLE LENGTH 0.15"
Click to download Speeds and Feeds PDF

Kyocera Solid Carbide Micro Drills

  • Original use in drill stainless steel medical materials
  • Shorter flute than normal PCB drills
  • Solid Carbide - not carbide flute and stainless shanks
  • 130° included point angle
  • 1/8" shank

The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
