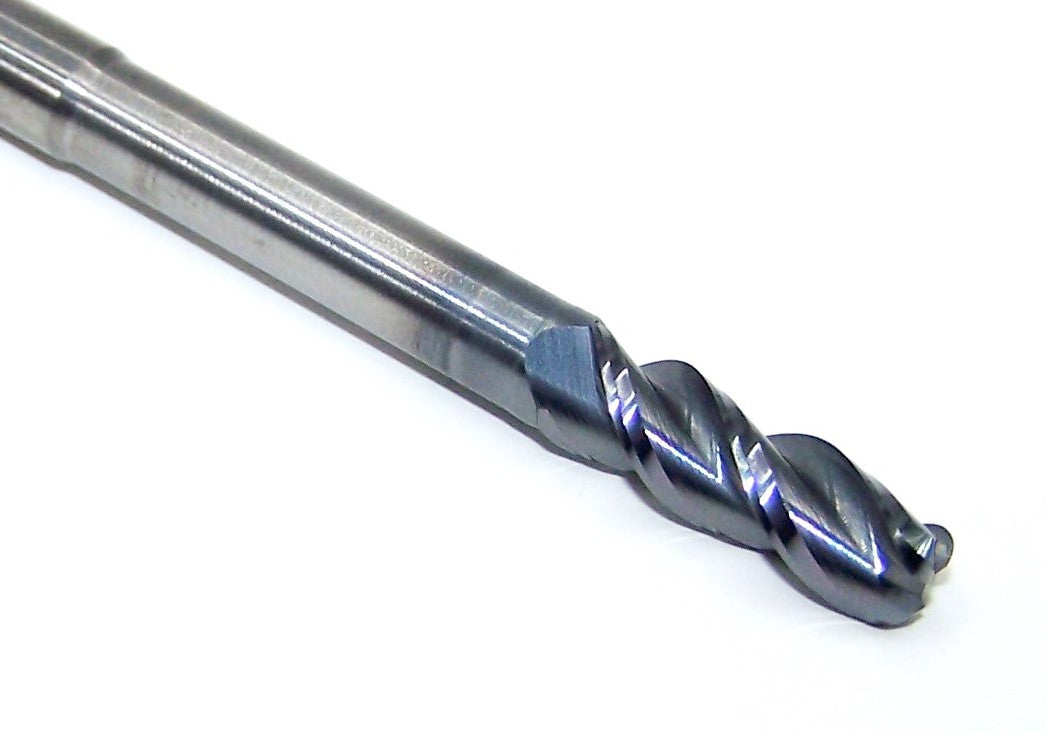

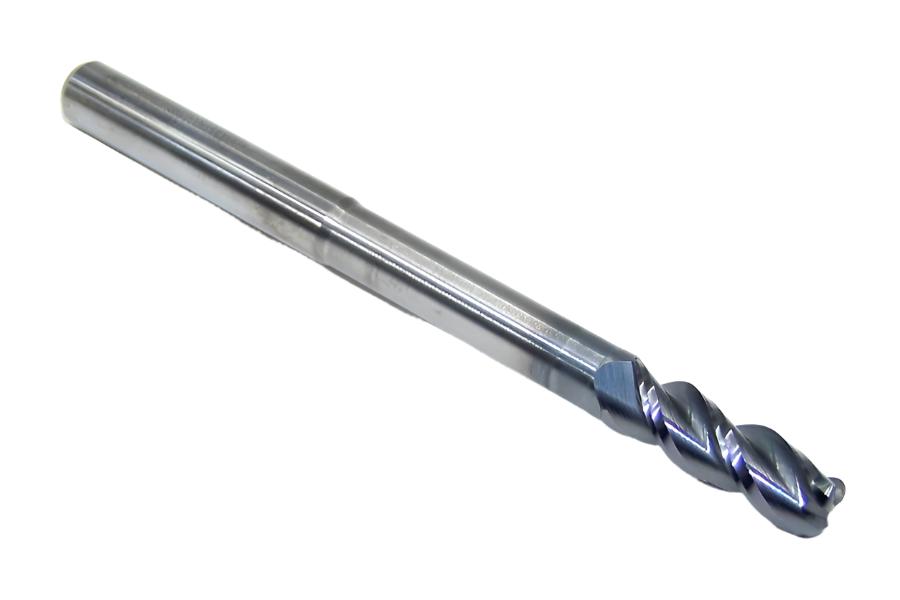

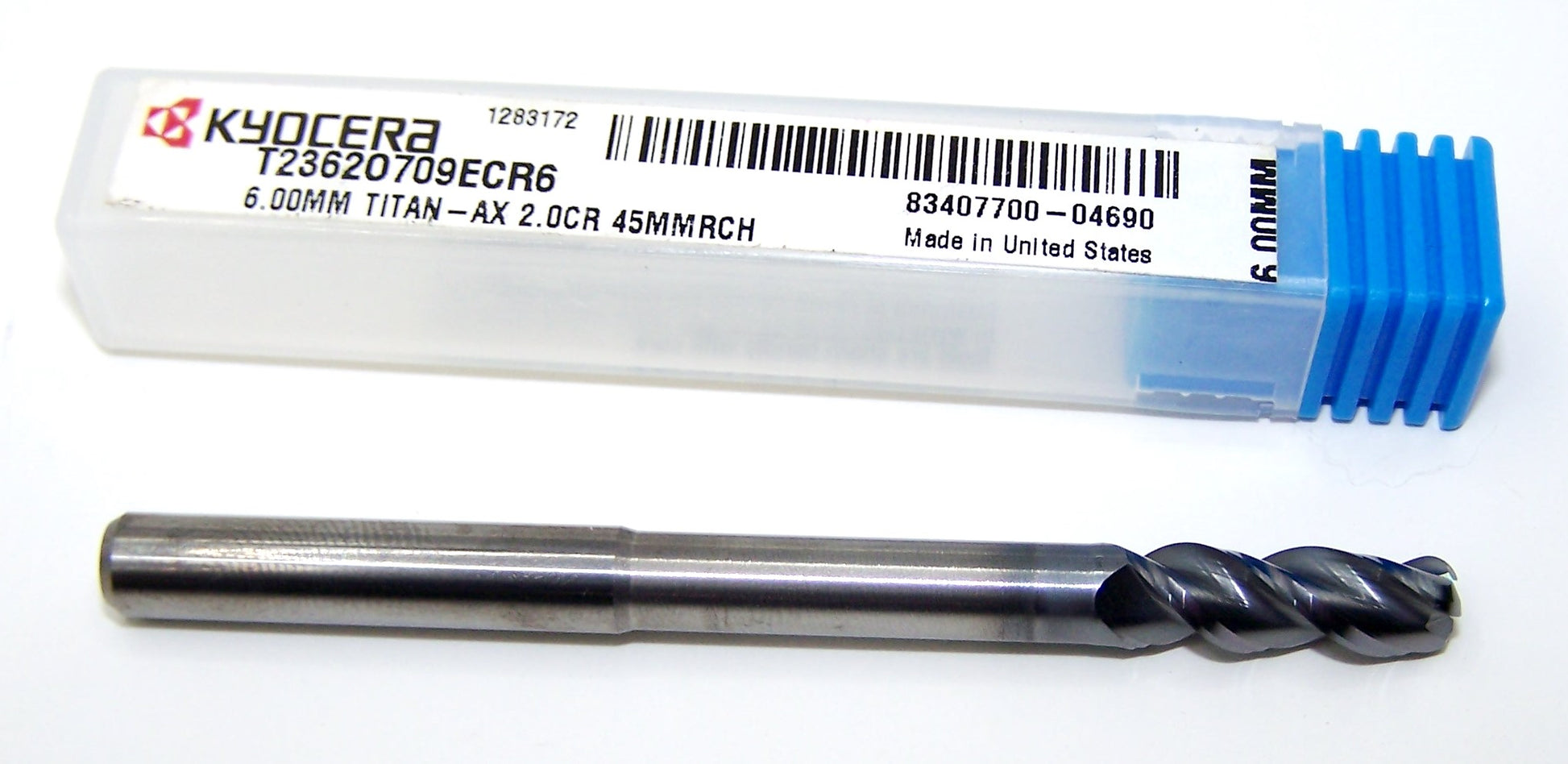

T2362O709ECR6 Kyocera Microtools 6.00mm Carbide 3 Flute End Mill .0787" Radius 1.77" Reach Coated .2362" Diameter .709" Flute 3.00" Length .236"shank Titan Series

T2362O709ECR6 Kyocera Microtools 6.00mm Carbide 3 Flute End Mill .0787" Radius 1.77" Reach Coated .2362" Diameter .709" Flute 3.00" Length .236"shank Titan Series

Part Number: T2362O709ECR6

SKU: 387571582611

Manufacturer: Kyocera Microtools

$19.00 USD
$27.30 USD $19.00 USD
Sale Sold out

18 in stock

PRODUCT STATS

DIAMETER 0.2362"
FLUTE NUMBER 3
LENGTH OF CUT 0.7090"
OVERALL LENGTH 3.0"
SHANK SIZE 0.236"
SIZE 6.00mm
BRAND Kyocera Microtools
CORNER RADIUS 0.0787"
CUTTING SIZE 6.00mm
CUT DIRECTION Up Cut
ENDS Single
END STYLE Radius
EXTENDED REACH 1.77"
FINISH TYPE Special
FLUTE DIRECTION Right Hand
FLUTE STYLE Variable Helix
MATERIAL Solid Carbide
MATERIALS CUT Copper, Steel, Titanium, Stainless Steel
MPN T2362O709ECR6
Click to download Speeds and Feeds PDF

Kyocera 3 Flute Titan Series

  • AX High Performance Coating
  • Increased Shank Diameter for Maximum Rigidity
  • Sub Micron Grain Carbide
  • Variable Helix Flute Design
  • For Steels, Stainless Steel, Cast Iron, Nickel Alloy, Titanium Alloy

Applications

  • Priority for Steel
  • Priority for Stainless Steel
  • Priority for Nickel/Cobalt
  • Priority for Titanium
  • Applicable for Stainless Steel
  • Applicable for Cast Iron




The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
