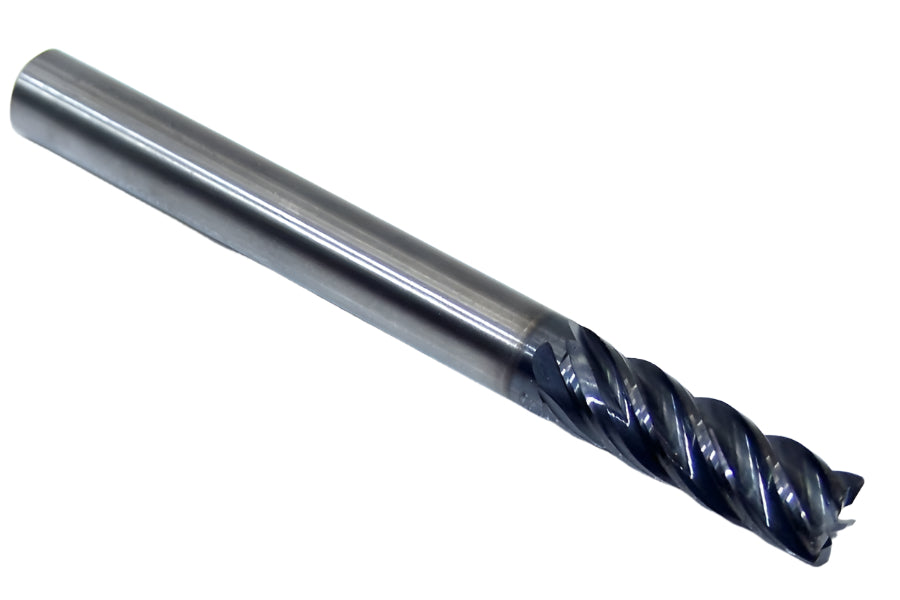

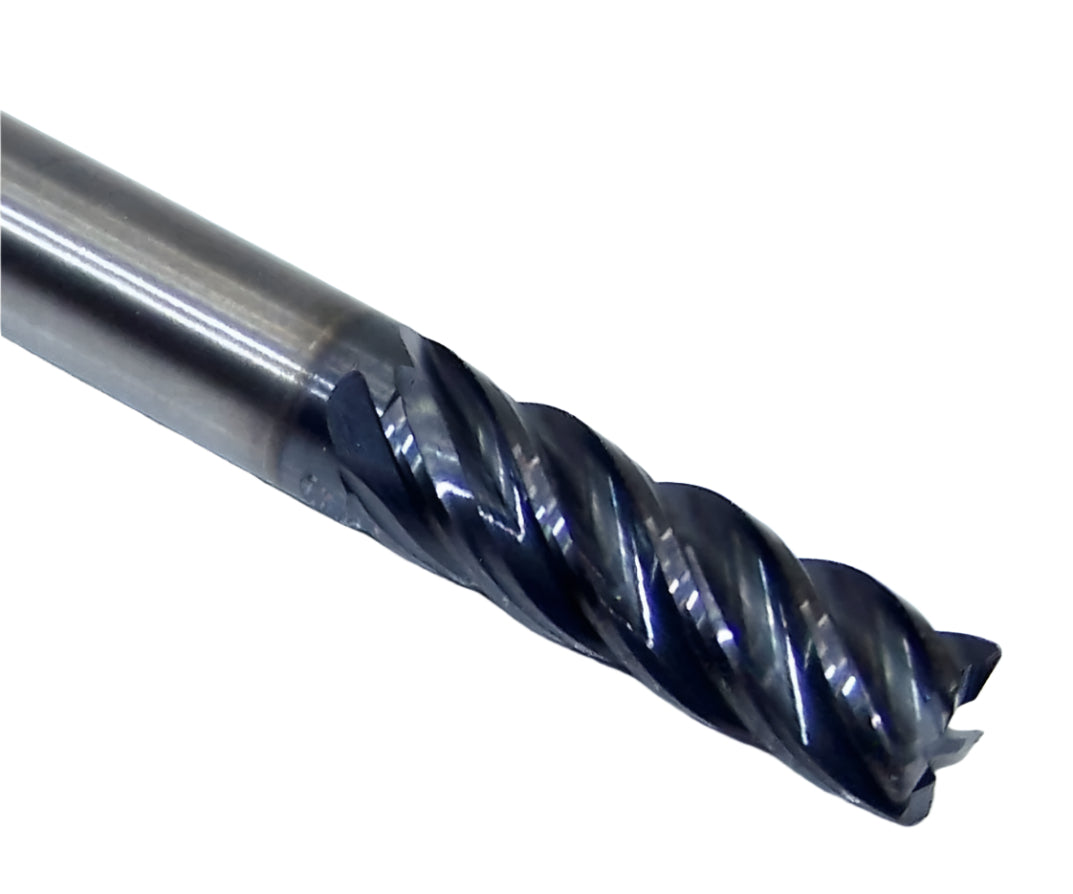

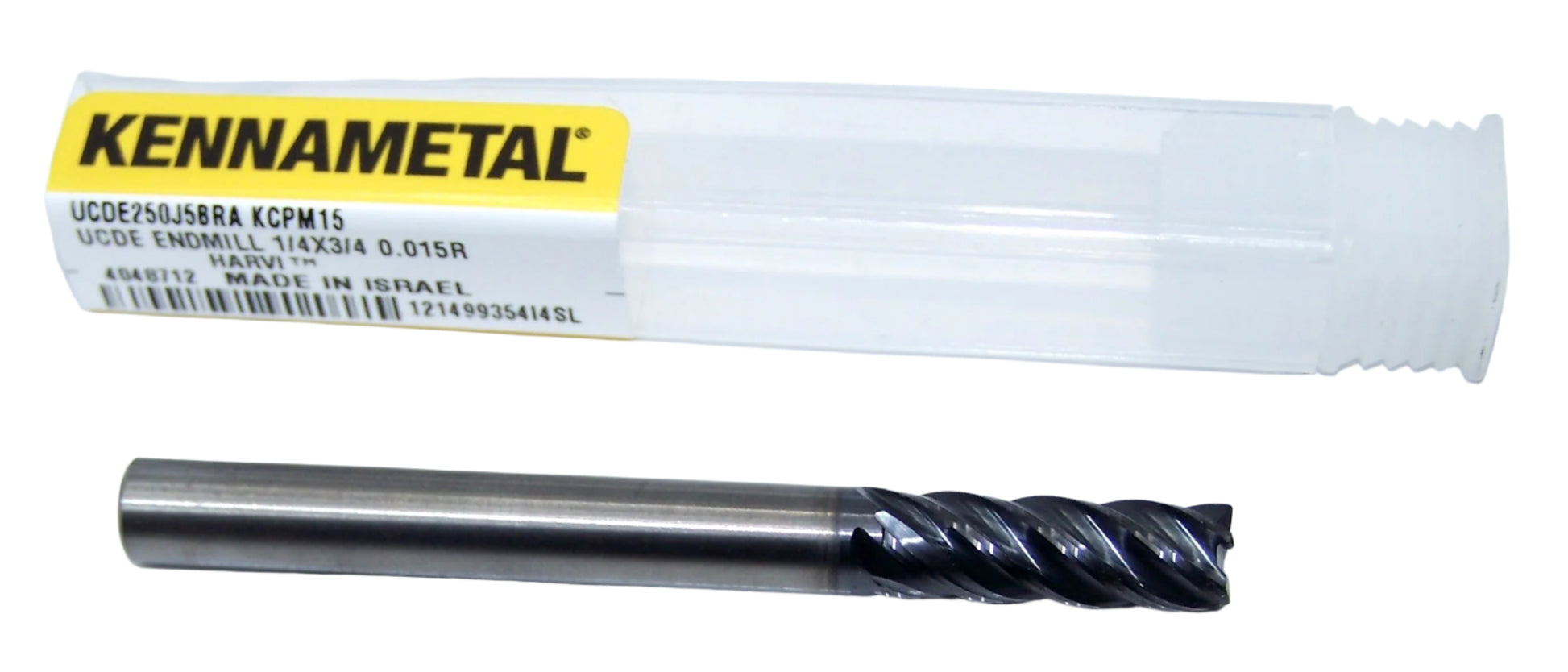

UCDE250J5BRA KCPM15 Kennametal 1/4" Carbide 5 Flute End Mill .015 Radius .250" Diameter .750" Flute 2.50" Length .250" Shank HARVI II 4048712

UCDE250J5BRA KCPM15 Kennametal 1/4" Carbide 5 Flute End Mill .015 Radius .250" Diameter .750" Flute 2.50" Length .250" Shank HARVI II 4048712

Part Number: UCDE250J5BRA KCPM15

SKU: 385076806829

Manufacturer: Kennametal

$37.08 USD
$37.08 USD
Sale Sold out

Low stock: 2 left

PRODUCT STATS

DIAMETER 0.2500"
FLUTE NUMBER 5
LENGTH OF CUT 0.7500"
OVERALL LENGTH 2.5"
SHANK SIZE 0.25"
SIZE 1/4"
ADAPTER STYLE MACHINE SIDE Straight-Cylindrical
BRAND Kennametal
CORNER RADIUS 0.015"
CUTTING SIZE 1/4"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Radius
FINISH TYPE Special
FLUTE STYLE Spiral
GRADE KCPM15
MATERIAL Solid Carbide
MATERIALS CUT Steel, Stainless Steel, Cast Iron, Hardened Steel
MPN UCDE250J5BRA KCPM15
USABLE LENGTH 0.75"

HARVI™ II Solid Carbide End Mill for High Feed Roughing and Finishing

  • Versatile solid carbide end mill for steel, stainless steel, cast iron and hard metals
  • HARVI II solid carbide end mills cover a variety of operations including dynamic milling
  • HARVI II sold carbide end mills feature unequal flute spacing for chatter-free machining at the highest feed rates
  • Eccentric relief grind for higher edge stability and higher feed rates
  • Trochoidal Milling, Ramping 3°, slotting, side milling
  • Slotting up to 6xD
  • Center cutting for plunging and ramping operations
  • 38° helix angle

Applications

  • steel
  • stainless steel
  • cast iron
  • hardened materials
