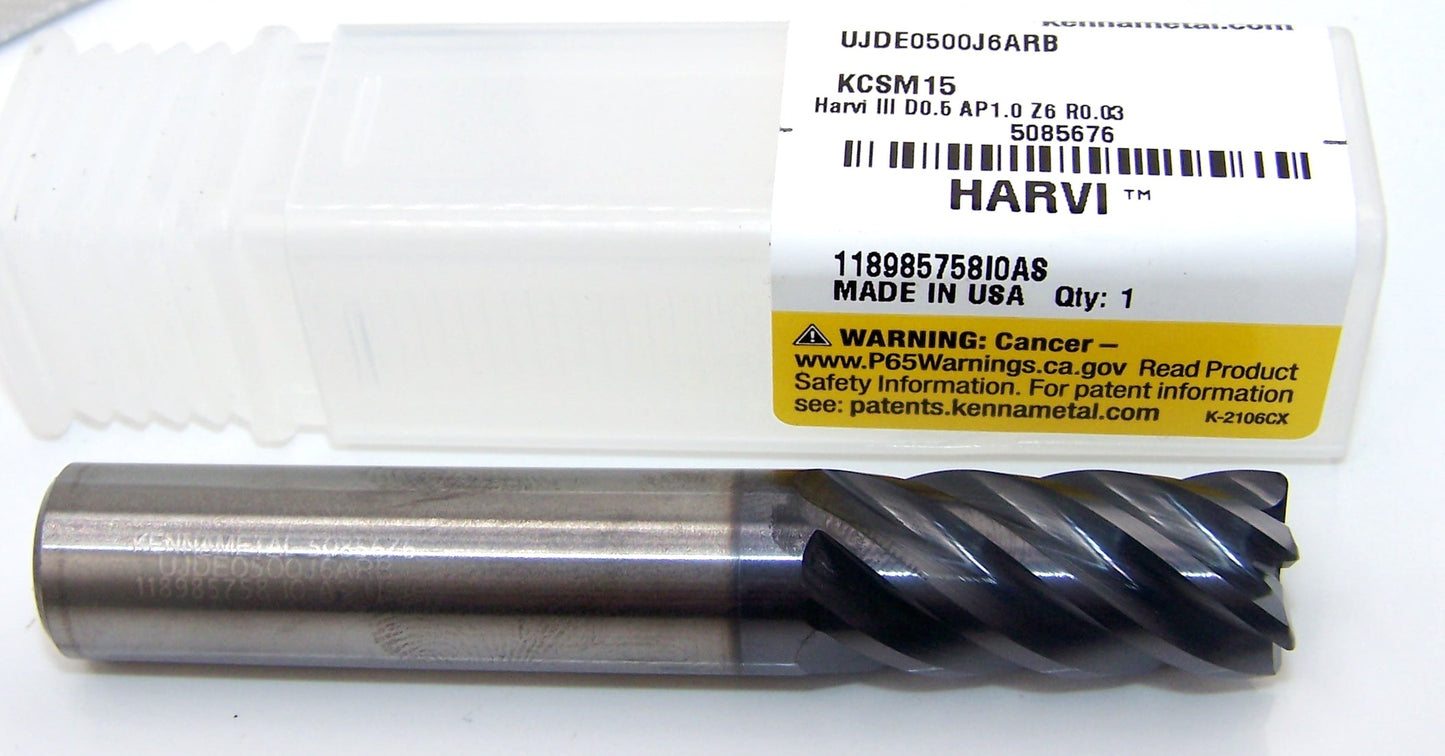

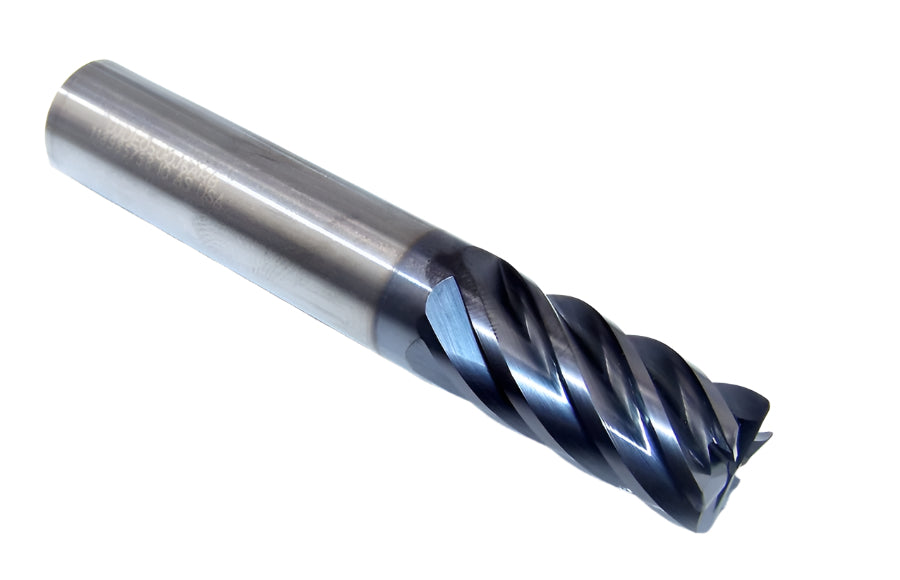

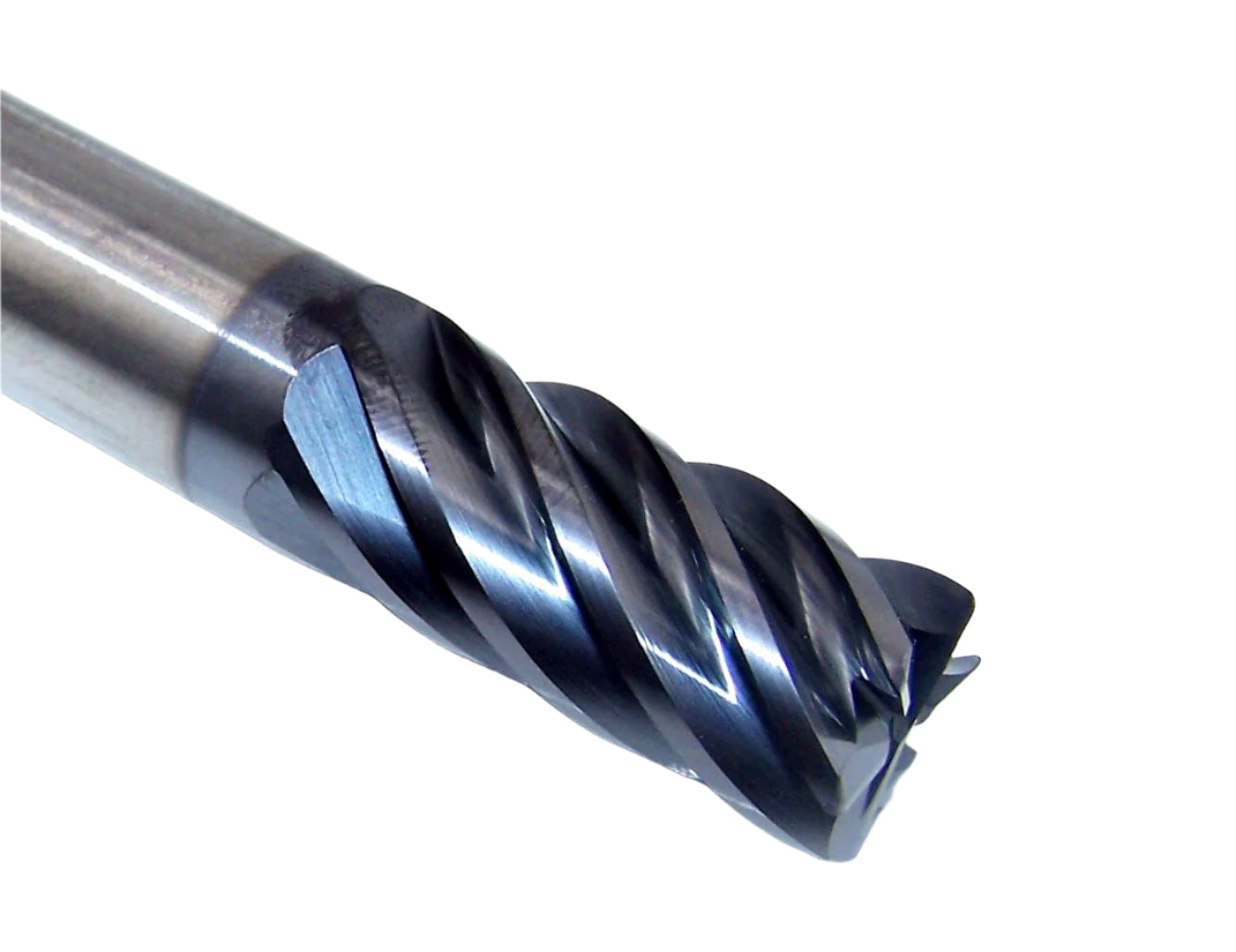

UJDE0500J6ARB KCSM15 Kennametal 1/2" Carbide 6 Flute End Mill .030 Radius .500" Diameter 1.00" Flute 3.0" Length .500" Shank HARVI III 5085676

UJDE0500J6ARB KCSM15 Kennametal 1/2" Carbide 6 Flute End Mill .030 Radius .500" Diameter 1.00" Flute 3.0" Length .500" Shank HARVI III 5085676

Part Number: UJDE0500J6ARB KCSM15

SKU: 387853707525

Manufacturer: Kennametal

$71.24 USD
$94.99 USD $71.24 USD
Sale Sold out

Low stock: 2 left

PRODUCT STATS

DIAMETER 0.5000"
FLUTE NUMBER 6
LENGTH OF CUT 1.0000"
OVERALL LENGTH 3.0"
SHANK SIZE 0.5"
SIZE 1/2"
ADAPTER STYLE MACHINE SIDE Straight-Cylindrical
BRAND Kennametal
CORNER RADIUS 0.03"
CUTTING SIZE 1/2"
CUT DIRECTION Up Cut
ENDS Single
END STYLE Radius
FINISH TYPE Special
FLUTE STYLE Spiral
GRADE KCSM15
MATERIAL Solid Carbide
MATERIALS CUT Steel, Titanium, Brass, Stainless Steel
MPN UJDE0500J6ARB KCSM15
USABLE LENGTH 1.0"

HARVI™ III Solid Carbide End Mill for High Feed Roughing and Finishing with Maximum Metal Removal Rates

  • Versatile solid carbide end mill for steel, stainless steel, and high temperature alloys with excellent surface finish
  • HARVI III solid carbide end mills cover a variety of operations including dynamic milling
  • HARVI III sold carbide end mills feature unequal flute spacing for chatter-free machining at the highest feed rates
  • Eccentric relief grind for higher edge stability and higher feed rates
  • Center cutting for plunging and ramping operations
  • 38° helix angle

Applications

  • steel
  • stainless steel
  • high-temp alloys
  • hardened materials



The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
