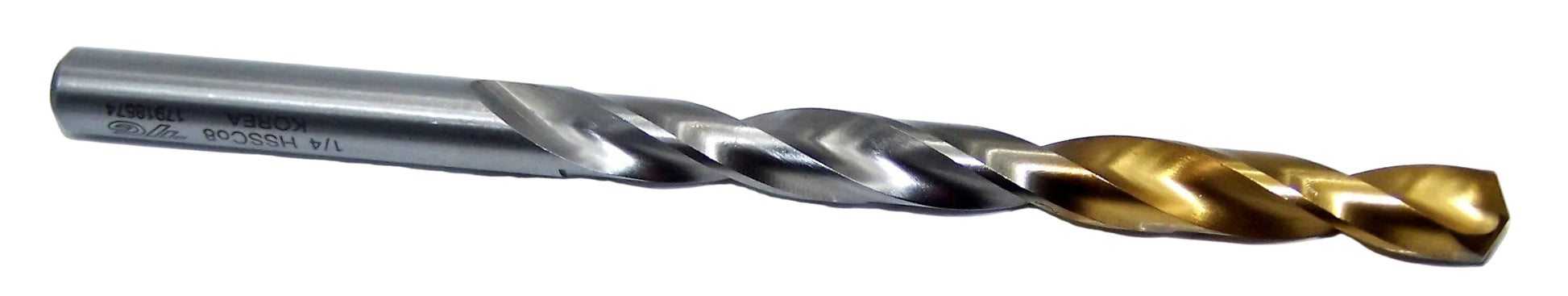

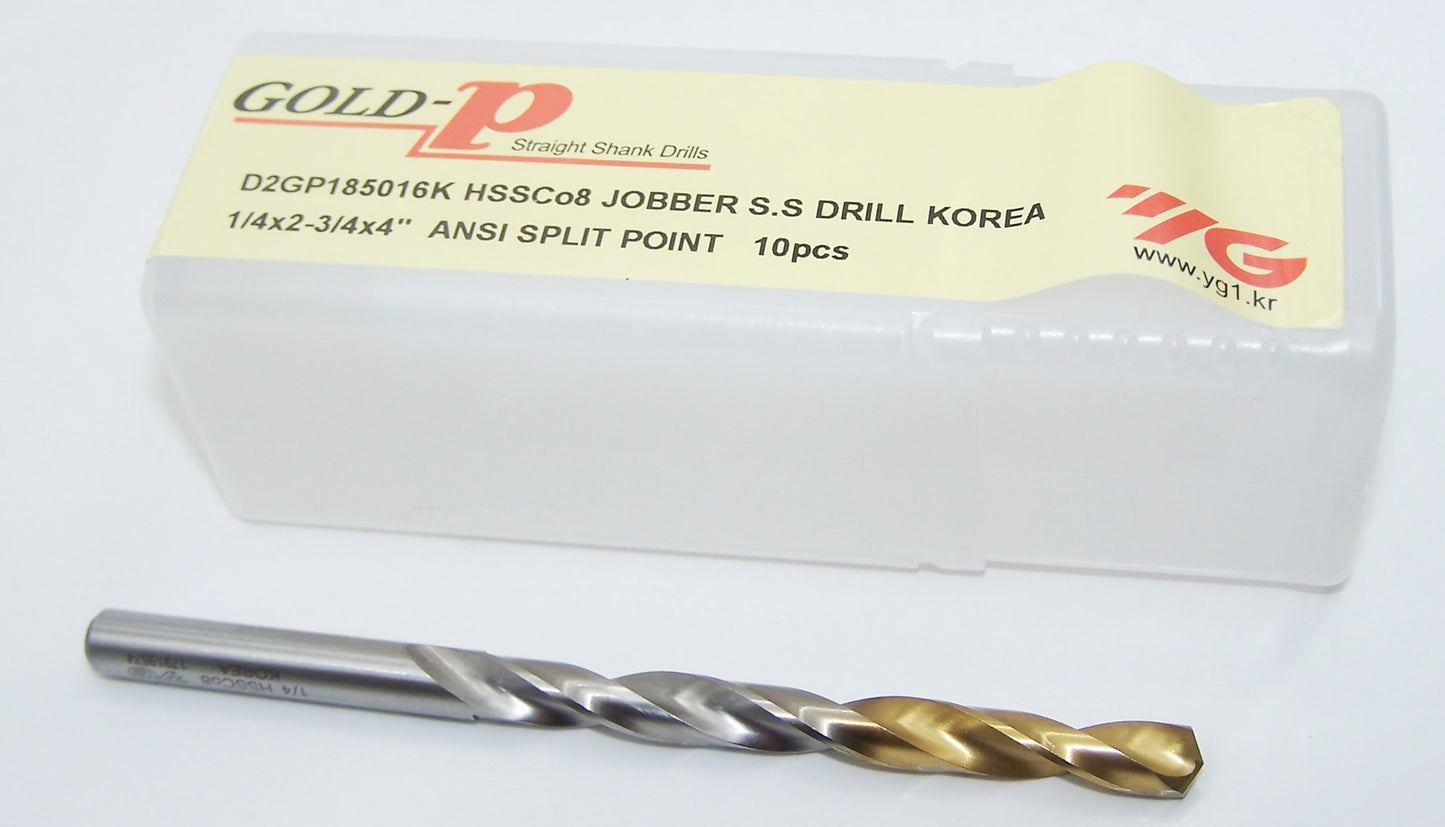

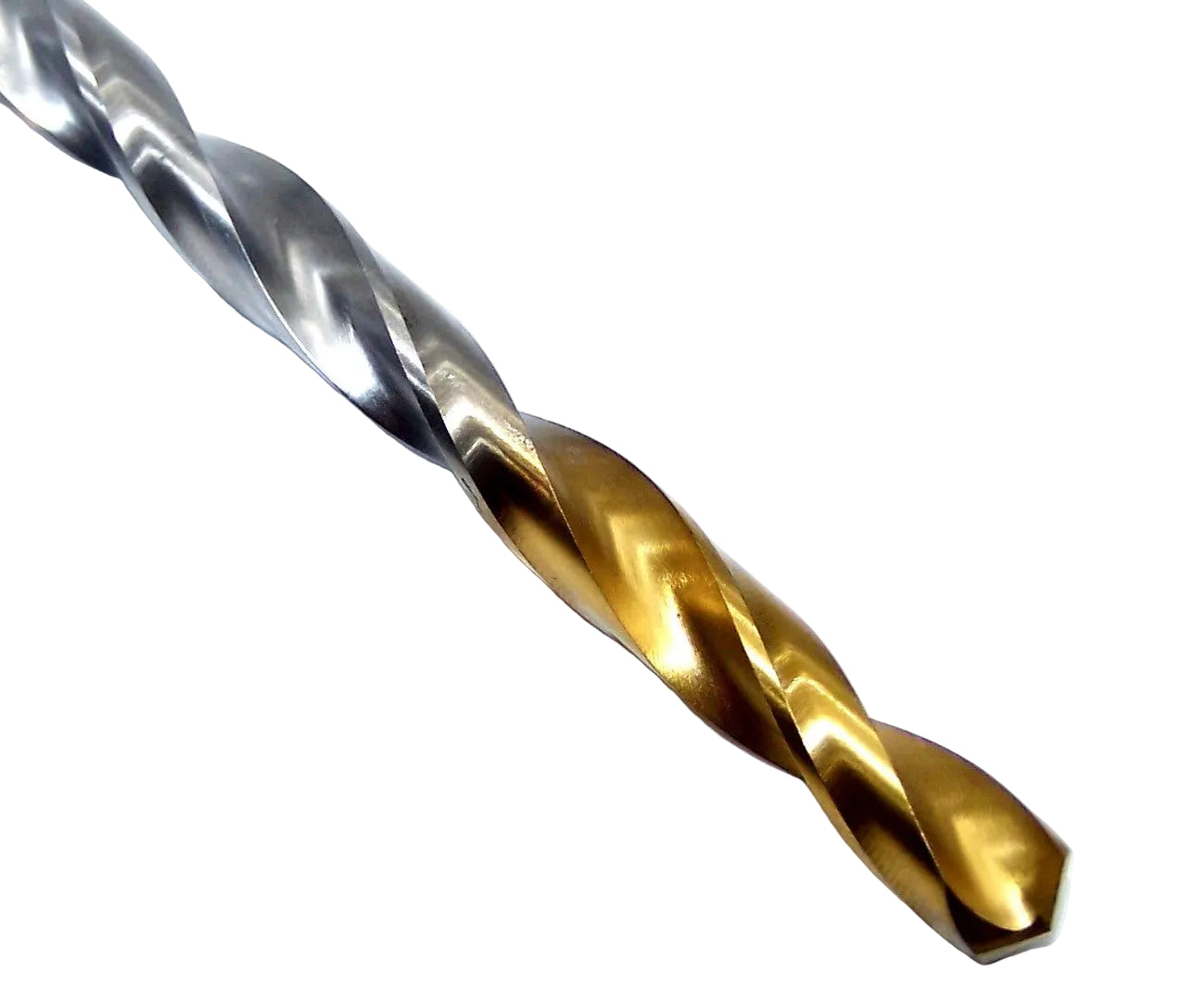

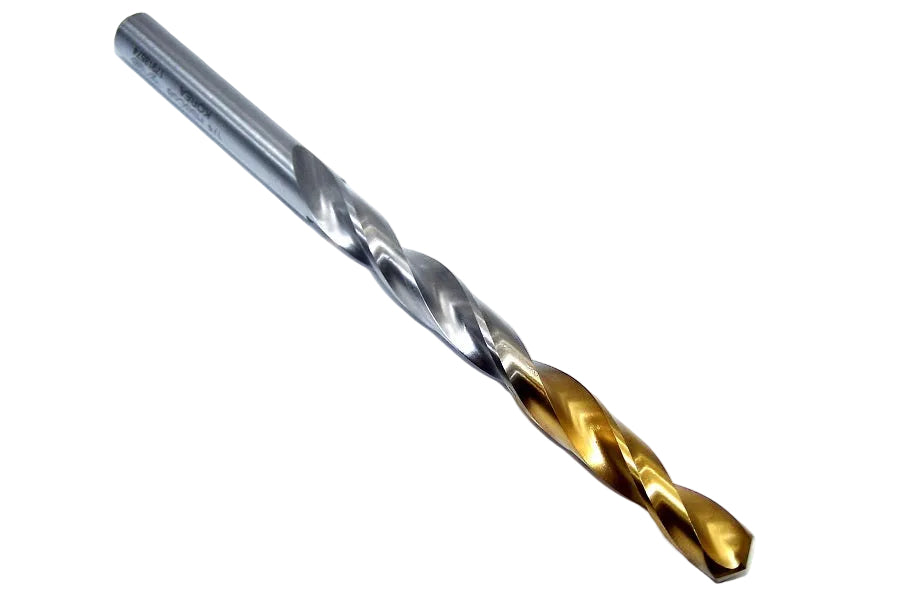

YG-1 D2GP185016 Gold-P HSS-Co8 Cobalt Jobber Drill Bit, 1/4" Dia, 135° Split Point, TiN Coated
YG-1 D2GP185016 Gold-P HSS-Co8 Cobalt Jobber Drill Bit, 1/4" Dia, 135° Split Point, TiN Coated
Part Number: D2GP185016
SKU: 389527605292
Manufacturer: YG-I
Regular price
$3.75 USD
Regular price
Sale price
$3.75 USD
Unit price
per
Low stock: 10 left
Couldn't load pickup availability
PRODUCT STATS
| DIAMETER | 0.2500" |
| FLUTE NUMBER | 2 |
| LENGTH OF CUT | 2.7500" |
| OVERALL LENGTH | 4.0" |
| SHANK SIZE | 0.25" |
| SIZE | 1/4" |
| BRAND | YG-I |
| CUTTING SIZE | 1/4" |
| CUT DIRECTION | Up Cut |
| ENDS | Single |
| END STYLE | Drill Point |
| FINISH TYPE | TiN |
| FLUTE DIRECTION | Right Hand |
| FLUTE STYLE | Spiral |
| INCLUDED POINT ANGLE | 135.0° |
| MATERIAL | Cobalt Steel |
| MATERIALS CUT | Steel, Aluminum, Composite Materials, Titanium, Stainless Steel, Hardened Steel, Wood, Cast Iron |
| MPN | D2GP185016 |
| USABLE LENGTH | 2.75" |
| WORK DIRECTION | Right Hand |
YG-1 Gold-P Series Jobber Length Drills
Maximize your drilling productivity with the YG-1 Gold-P series Drills. Engineered for High-performance application, these drills are designed to handle tough materials where standard high-speed steel bits fail.
Key Features
- Premium Cobalt Substrate: Manufactured from M42 HSS-Co8%, which offers excellent red-hardness for drilling into alloyed steels, stainless steels, and cast iron.
- 135° Split Point: Self-centering prevents "walking" at entry and reduces required thrust, making it ideal for both automated CNC and manual drilling.
- Gold-P Tin Coating: Enhances surface hardness and protects the cutting edge from premature wear in high-heat environments.
- Precision Geometry: Optimized flute shape ensures efficient chip evacuation, preventing clogging and heat build-up
The “rules of the tools” apply. What this means is that all unused tools can be returned for a full refund (minus freight), no questions asked.
